Graphite Machining: Techniques, Applications, and Advanced Solutions (2)

4 Advanced Graphite Machining Techniques

4.1 High-Speed CNC Milling

Modern graphite machining centers like the GF Machining Solutions MILL S 500 utilize advanced CNC systems achieving:

• Acceleration rates up to 10 m/s² and rapid traverse speeds of 61 m/min

• Positioning accuracy within ±1 μm and repeatability of ±0.5 μm

• Material removal rates 100% higher than conventional machines
  These capabilities enable dramatically reduced cycle times while maintaining exceptional precision, even for complex 3D contours.

4.2 Ultrasonic-Assisted Machining

Ultrasonic vibration machining represents a significant technological advancement:

• Reduces cutting forces by 30-50%, minimizing edge chipping

• Extends tool life by 2-3 times through reduced abrasive wear

• Improves surface quality (achieving Ra values as low as 0.2 μm)

• Enables machining of finer features (wall thicknesses down to 0.1 mm)
  This technique is particularly valuable for manufacturing complex graphite electrodes with delicate features.

4.3 Electrical Discharge Machining (EDM)

While graphite is often used as electrodes in EDM, it can also be machined using EDM processes for:

• Creating extremely complex geometries impossible with mechanical machining

• Achieving superior surface finishes on hardened materials

• Micro-EDM applications producing features smaller than 50 μm
  The same graphite properties that make it ideal for EDM electrodes (electrical conductivity, wear resistance) also make it suitable for EDM machining itself.

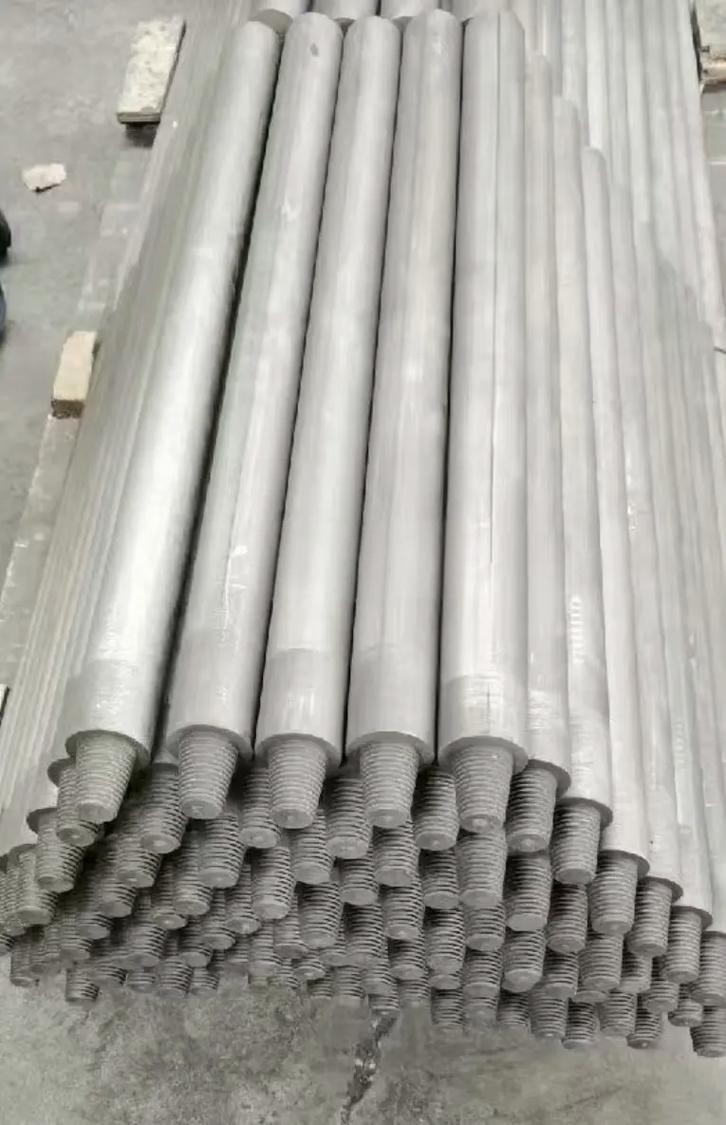

4.4 Specialized Processes for Large-Scale Components

For large graphite components (e.g., molds >1500 mm), a multi-stage process is employed:

1. Primary cutting: Using diamond-coated saws with water-based cooling

2. Rough machining: 3-axis CNC with 6mm diamond-coated tools at 4mm stepover

3. Semi-finishing: 3mm ball nose tools with 0.8mm stepover (0.2mm residual)

4. Finishing: 1mm tapered tools with 0.15mm stepover
   This approach achieves ±0.1mm dimensional accuracy on large components while managing material stress relief and vibration control.

5 Advanced Tooling and Equipment Solutions

5.1 Specialized Cutting Tools

• Diamond-coated end mills: 3-5 times longer life than uncoated tools

• Multi-layer coatings: Combining CDV (Chemical Vapor Deposition) with specialized topcoats

• Custom geometries: Optimized flute designs for efficient chip (dust) evacuation

• Vibration-damped toolholders: Reducing chatter in extended-reach applications

5.2 State-of-the-Art Machining Centers

Modern graphite machining centers incorporate multiple advanced features:

Table: Advanced Features of Modern Graphite Machining Centers
