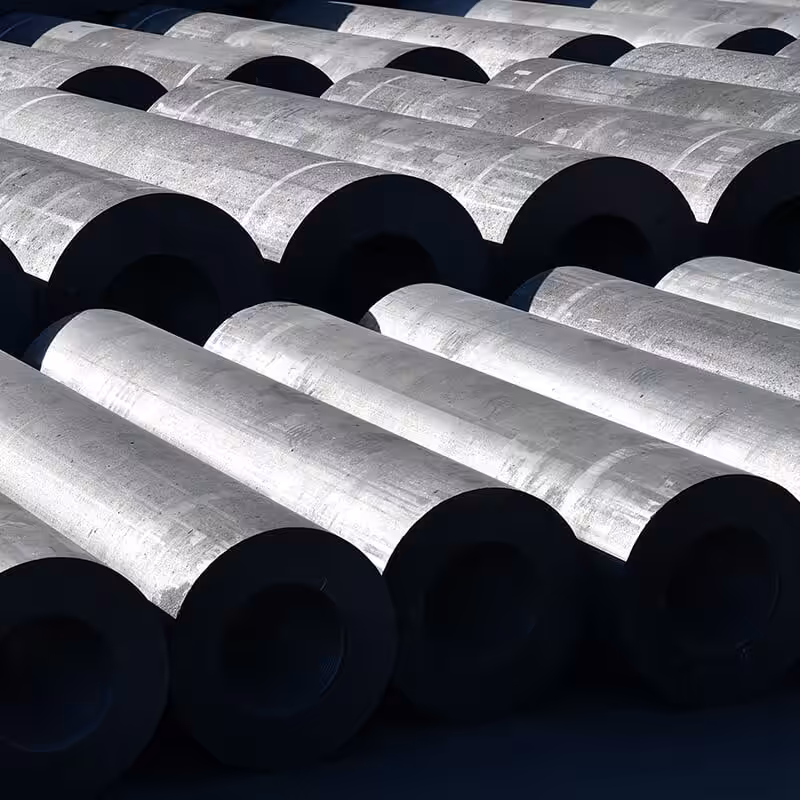

UHP ultra-high power Graphite Electrode 450-700mm For Steel smelting plant

Ultra-high power UHP graphite electrodes  serve as electrodes in electric arc furnaces, generating high-temperature arcs to melt scrap steel, iron, or other metal raw materials for the production of new alloys and metals

PRODUCTS CATEGORIES
PRODUCT DESCRIPTION

Graphite electrode brief introduction

Graphite electrode is made from domestic first-class petroleum coke and high quality needle coke and are widely used in electric arc furnaces for the production of alloy steels, metal, and other nonmetallic materials, etc. The Graphite electrodes include regular power, high power, ultra-high power, and square electrodes. The range of diameters covers from 250mm to 700mm.
Our products have the following characteristics: low electric resistivity, good electrical and thermal conductivity, high oxidation resistance, greater resistance to thermal and mechanical shock, high mechanical strength, and high machining accuracy.

Application

Graphite electrodes are mainly used in electric arc furnace steelmaking, the working principle of graphite electrodes in steel refining involves generating high temperatures through an electric arc, melting the metal at the furnace’s base, and facilitating critical chemical reactions such as decarburization and alloying to produce high-quality steel.

电弧炉炼钢 炼钢工作原理

Specifications for BENHONG Graphite electrode

RP HP UHP
Diameter

75mm-1400mm with lengths of

1000mm-2200mm

75mm-700mm with lengths of

1000mm-2700mm

350mm-700mm with lengths of

1600mm-2700mm

Parameters of ultra-high power Graphite electrodes

ITEMS UNIT NOMINAL DIAMETER(MM)
450-500 600-700
Specific resistance Electrode μΩ·m 4.5-5.0 4.5-5.4
Nipple 3.5-3.8 3.0-3.6
Transverse strength Electrode MPa ≥12.0 ≥10.0
Nipple ≥22.0 ≥24.0
Elastic modulus Electrode GPa ≤13.0 ≤13.0
Nipple ≤18.0 ≤20.0
Ash content Electrode % ≤0.2 ≤0.2
Nipple
Bulk density Electrode g/cm3 1.68-1.72 1.68-1.72
Nipple 1.78-1.84 1.80-1.86
C.T.E Electrode 10-6℃ ≤1.2 ≤1.2
Nipple ≤1.0 ≤1.0

Other attributes

Place of Origin Liaoning and Shanxi Province, China
Brand Name BENHONG
Color Black
Other name Graphite Electrode for Electric Arc Furnace,steel,Graphite Electrodes With Nipples Product
Packing Graphite Electrodes are packed on wooden pallets with steel strips

Graphite electrode recommended joint torque

Electrode Diameter Torque
inch mm N.m
12 300 900
14 350 1300
16 400 1550
18 450 1850
20 500 2500
22 550 3500
24 600 4000
26 650 5000
28 700 6000
30 750 7500
32 800 9500
Note: Please contact us for any questions.

Attrition rate

The rate at which UHP graphite electrodes are consumed in an EAF depends on the steelmaking or other raw materials used, the grades of steel being produced, and the amount of supplemental (chemical) energy used. EAFs typically consume electrodes at a rate of around 2kg per tonne of steel produced, with some specialty steel applications consuming at a slightly higher rate.

Specification of electrode Consumption(kg/ton)
Rough refining Refining
UHP600mm ≤2.0 ≤0.8
UHP500mm
UHP400mm

Lead time

Quantity (tons) 1-5000 >5000
Lead time (days) 15 To be negotiated

Packing,protection and safe transportation

IMG 20230218 165306 2 Safe handling graphite electrode safe packing graphite electrode

About us

BENHONG is a professional manufacturer, specializing in the field of graphite electrodes. With various products, the specifications of graphite electrode range from 75 mm to 700 mm in diameter. Our graphite electrodes have various specifications, These products always have three types of lengths, including 1800 mm, 2100 mm and 2400mm. If user has special requirements, please contact us.

1.30 years of production experience has convinced us that this is our careers, not just a business.
2.We have all the certificates needed in the field:ISO/SGS/MSDS.
3.Our team is honest, united and has a high service spirit.
4.We have establaished cooperation with Saudi Arabia, Iran,India, Turkey, Brazil, Russia and other countries.
5.Customer as the core of the complete after-sales service.
6.The repeat purchase rate exceedns 92%.
