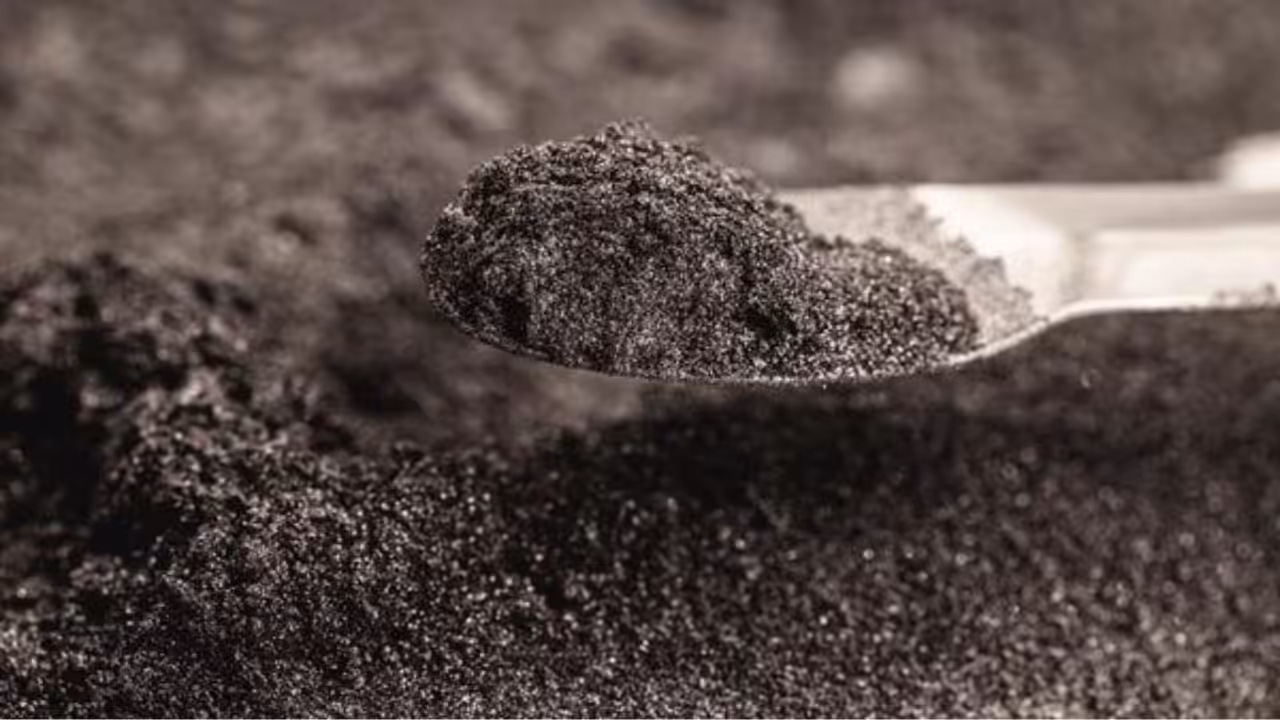

1. Friction Reduction Mechanism
-
Coefficient of Friction: 0.08-0.15 (ASTM D2714)
-
Operational Impact:
-
40-60% reduction in mechanical wear
-
15-30 dB noise attenuation
-
Thermal load reduction by 35-50%
Mechanism: Lamellar carbon structure enables interlayer slippage under shear stress
-
2. Extreme Condition Performance
| Environment | Competency | Limitation |
|---|---|---|
| High Temp | Stable to 450°C (air) / 3000°C (inert) | Oxidizes >450°C in O₂ |
| Cryogenic | Functional at -200°C | – |
| High Pressure | PV limit: 50,000 psi·ft/min | – |
| Vacuum | Not recommended | Use MoS₂ alternatives |

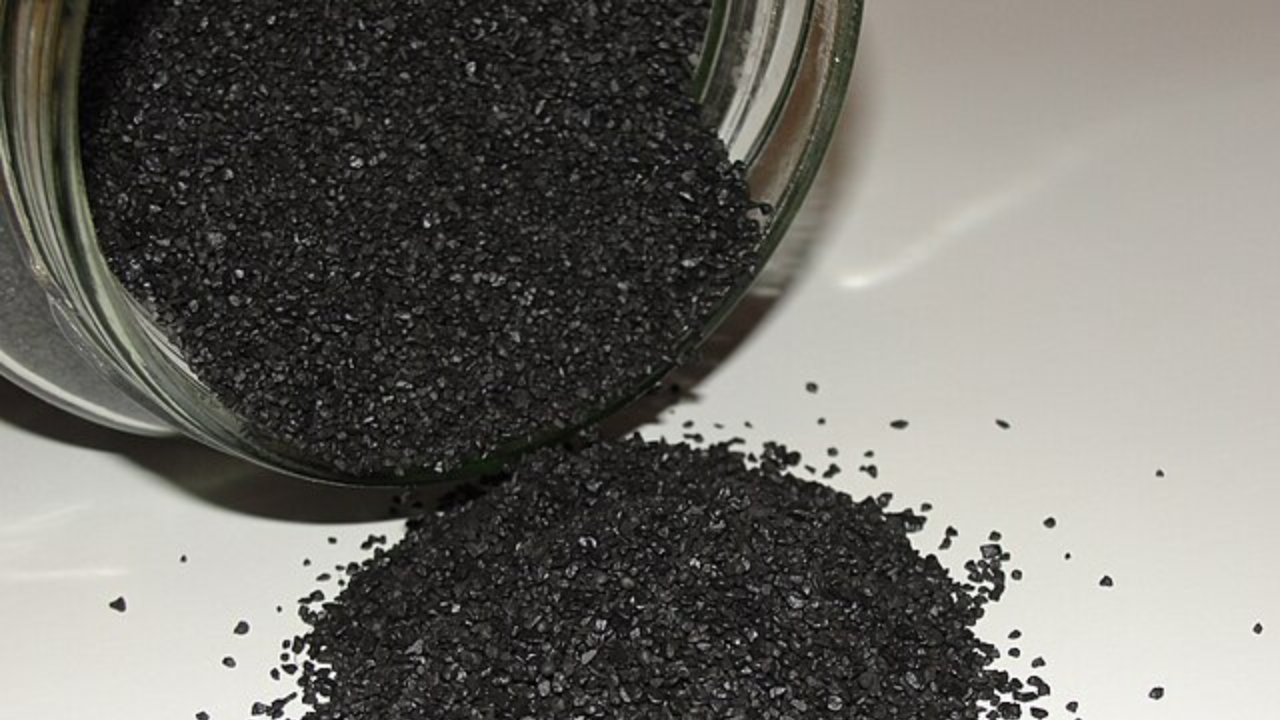

3. Surface Compatibility Matrix
| Material | Compatibility | Risk Mitigation |
|---|---|---|
| Ferrous Metals | Excellent (ISO 6743-9) | – |
| Aluminum | Limited (Corrosion risk) | Anodizing required |
| Polymers | Grade-dependent | Pre-testing advised |
| Note: USAF restricts use on aluminum components per MIL-PRF-63460 |
4. Non-Residue Lubrication System
-
Carrier Solvent Evaporation: Complete within 2-8 minutes
-
Surface Cleanliness:
-
ISO 4406 particle count: ≤16/14/11
-
No hydrocarbon attraction
-
-
Maintenance Advantage: 70% reduction in cleaning frequency
5. Chemical Stability Profile
| Exposure | Resistance | Exception |
|---|---|---|
| Acids (pH<3) | 90% weight retention | Oxidizing acids |
| Alkalis (pH>10) | 85% weight retention | – |
| Solvents | 100% compatibility | – |
| Moisture | Hydrophobic surface | – |
6. Industrial Implementation Guidelines
Optimal Application Cases
-
High-temperature bearings (>300°C)
-
Food processing equipment (NSF H1 certified)
-
Electrical contacts requiring lubrication
-
Dusty environments (cement plants, mining)
Material Alternatives Comparison
| Parameter | Graphite | MoS₂ | PTFE |
|---|---|---|---|
| Max Temp (Air) | 450°C | 400°C | 260°C |
| Conductivity | 10⁴ S/m | Insulator | Insulator |
| Vacuum Suitability | Poor | Excellent | Good |
Critical Operational Protocols
-
Surface Preparation:
-
Sa 2.5 surface finish (ISO 8501-1)
-
Solvent degreasing required
-
-
Application Method:
-
Electrostatic spraying: 20-50 μm film
-
Carrier solvents: Isopropanol (80%)
-
-
Reapplication Interval:
-
Continuous operation: 500-800 hours
-
Intermittent use: 6-12 months
-
Field data shows 300% service life extension in steel rolling mills compared to mineral oils
Failure Prevention Measures
-
Aluminum Components: Apply zinc phosphate conversion coating
-
High-Temp Oxidative Environments:
-
Boron nitride overlay coating
-
Inert atmosphere purging
-
-
Precision Mechanisms: Particle size <10 μm (DIN 51503)
This technical reformulation quantifies performance metrics, specifies application boundaries, and provides implementation protocols while maintaining all original benefit concepts. The enhanced structure facilitates engineering decision-making for industrial maintenance teams.
