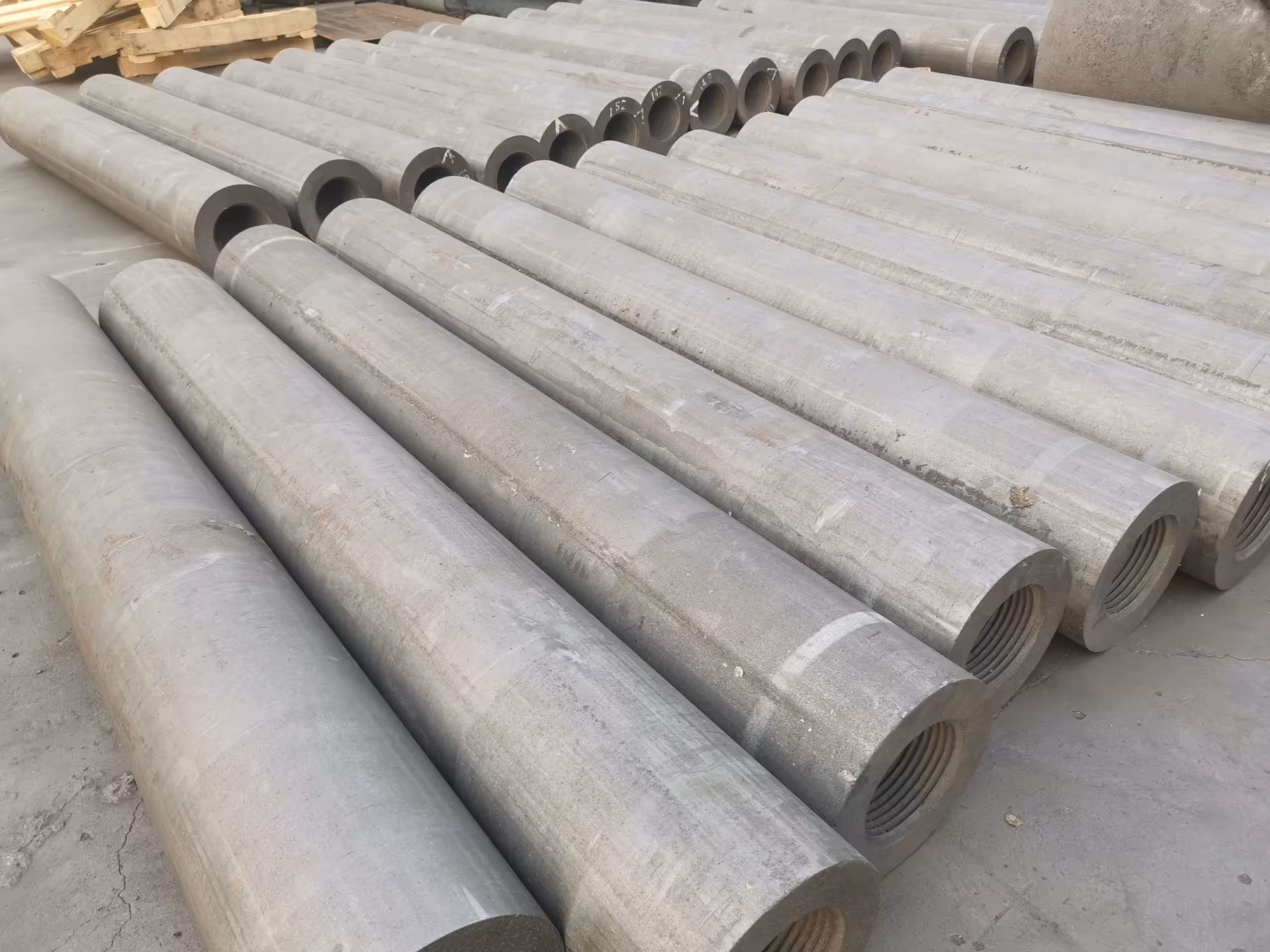

Arc Furnace Regular Power RP Graphite Electrode 250-1400mm For Steelmaking
The advantages of regular power graphite electrodes in steelmaking lie in their cost-effectiveness, stability, and suitability for use in small to medium-scale steel production
Graphite electrode brief introduction
Graphite electrode, also known as artificial graphite electrode, is based on petroleum coke and needle coke as the main raw materials, and coal pitch as the binder. After calcining, grinding, mixing and kneading, extrusion forming, roasting, asphalt impregnation, graphitization, machining and other series.A high temperature resistant graphite conductive material produced by the process.Our products have the following characteristics: low electric resistivity, good electrical and thermal conductivity, high oxidation resistance, greater resistance to thermal and mechanical shock, high mechanical strength, and high machining accuracy.
Specifications for BENHONG Graphite electrode
| RP | HP | UHP | |
| Diameter | 75mm-1400mm with lengths of 1000mm-2200mm | 75mm-700mm with lengths of 1000mm-2700mm
| 350mm-700mm with lengths of 1600mm-2700mm |
Regular Power RP graphite electrode parameters
| ITEMS | UNIT | NOMINAL DIAMETER(MM) | |||
| 250~300 | 350~600 | 780~1400 | |||
| Specific resistance | Electrode | μΩ·m | 7.5-8.5 | 7.5-8.5 | 8.5-10.5 |
| Nipple | 5.8-6.5 | 5.8-6.5 | 5.8-6.5 | ||
| Transverse strength | Electrode | MPa | ≥9.0 | ≥8.5 | ≥7.0 |
| ≥16.0 | ≥16.0 | ≥16.0 | |||
| Elastic modulus | Electrode | GPa | ≤9.3 | ≤9.3 | ≤12.0 |
| Nipple | ≤13.0 | ≤13.0 | ≤13.0 | ||
| Ash content | Electrode | % | ≤0.3 | ≤0.3 | ≤0.3 |
| Nipple | |||||
| Bulk density | Electrode | g/cm3 | 1.55-1.64 | 1.55-1.63 | 1.55-1.63 |
| Nipple | ≥1.74 | ≥1.74 | ≥1.74 | ||
| C.T.E | Electrode | 10-6℃ | ≤2.4 | ≤2.4 | ≤2.4 |
| Nipple | ≤2.0 | ≤2.0 | ≤2.0 | ||
Other attributes
| Place of Origin | Liaoning and Shanxi Province, China |
| Brand Name | BENHONG |
| Color | Black |
| Other name | Graphite Electrode for Electric Arc Furnace,steel,Graphite Electrodes With Nipples Product |
| Packing | Graphite Electrodes are packed on wooden pallets with steel strips |
Graphite electrode recommended joint torque
| Electrode Diameter | Torque | |
| inch | mm | N.m |
| 12 | 300 | 900 |
| 14 | 350 | 1300 |
| 16 | 400 | 1550 |
| 18 | 450 | 1850 |
| 20 | 500 | 2500 |
| 22 | 550 | 3500 |
| 24 | 600 | 4000 |
| 26 | 650 | 5000 |
| 28 | 700 | 6000 |
| 30 | 750 | 7500 |
| 32 | 800 | 9500 |
| Note: Please contact us for any questions. | ||
Lead time
| Quantity (tons) | 1-5000 | >5000 |
| Lead time (working days) | 15 | To be negotiated |
Packing,protection and safe transportation
The Causes of Electrode Breakage
When the electrode is stressed, the degree of force decreases progressively from the top to bottom. The maximum stress is on the joint of electrode and nipple under the holder.
When the electrode is subjected to external force: The external force of stress concentration > the strength of the electrode, and this will lead to the damage of the electrode.
The causes of external force: the collapse of the big charging materials during the melting period, the non-conducting objects exist at the bottom of the electrode in the scrap steel, the impact of the nubby flowing steel.
The causes of breakage:the incongruous response speed of the lifters, the deviated electrode the furnace cover holes from the core, the gaps between the joint of electrode and nipple and the unsubstandard nipples.
Poor machining accuracy of electrodes and joints will also cause poor coordination and joint breakage.
About us
BENHONG is a professional manufacturer, specializing in the field of graphite electrodes. With various products, the specifications of graphite electrode range from 75 mm to 700 mm in diameter. Our RP graphite electrodes have various specifications, These products always have three types of lengths, including 1800mm, 2100mm and 2400mm. If user has special requirements, please contact us.
1.30 years of production experience has convinced us that this is our careers, not just a business.
2.We have all the certificates needed in the field:ISO/SGS/MSDS.
3.Our team is honest, united and has a high service spirit.
4.We have establaished cooperation with Saudi Arabia,Iran,India, Turkey, Brazil, Russia and other countries.
5.Customer as the core of the complete after-sales service.
6.The repeat purchase rate exceedns 92%.
